I.C.M.I Product

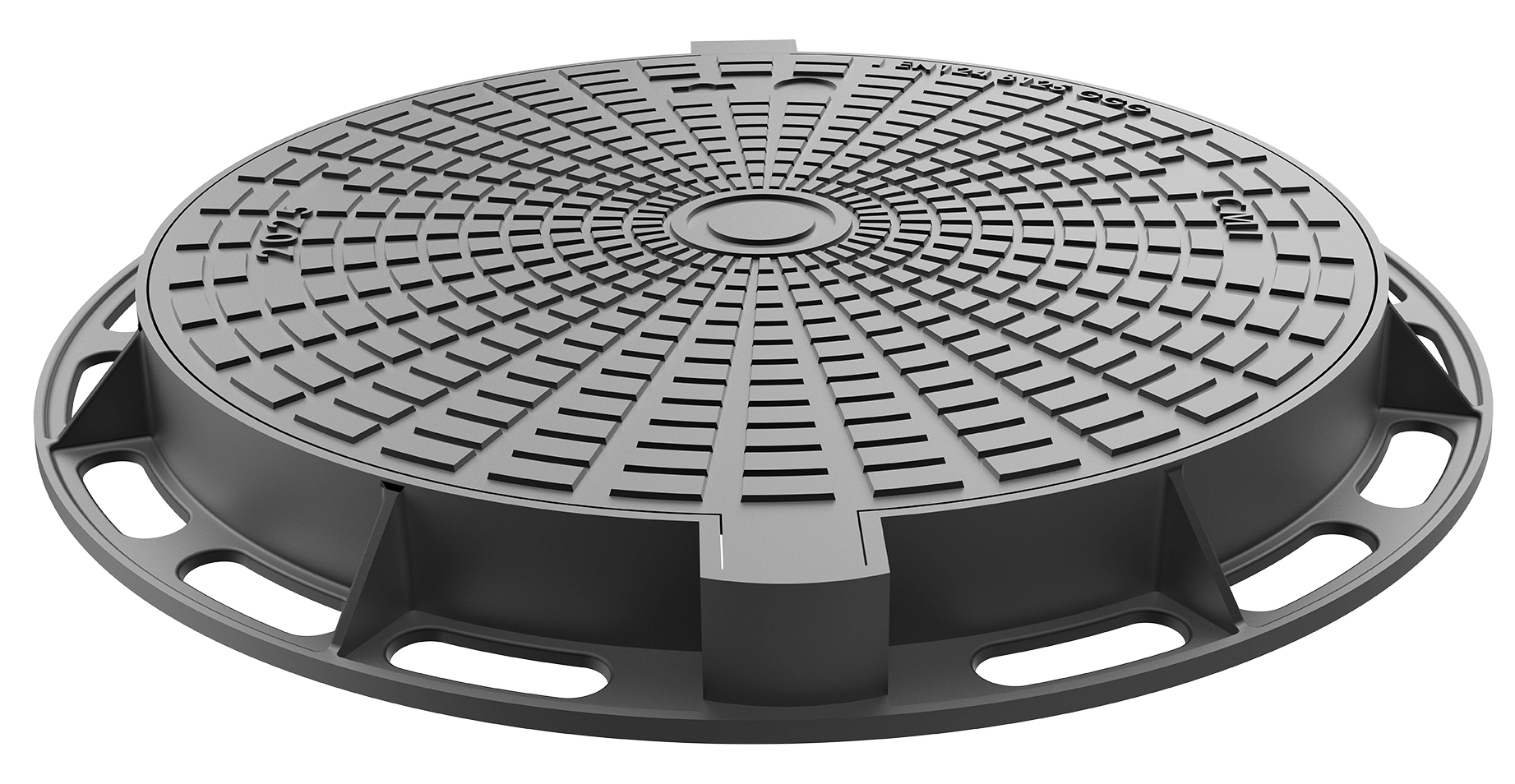

Round Cover - Round Frame with Hinge & Lock

MC-G2-D-21500

Footways, pedestrian and comparable areas, car parks or car parking decks.

Standard
EN 124-2
Material
GGG
Load
B125
Status
Available
Product Preview
MC-G2-D-21500
ParkingB125
MC-G2-D-21500
Single Seal
Hinge
With Lock
Home>Manhole Covers>Class B125>Single Seal>MC-G2-D-21500

Certification & Specifications

Tested & certified for B125 (b125 Ton) according to EN 124-2
Coating
Applied coat according to BS 3416 Epoxy Paint, Or any other type of paint according to the customer’s requirements.
Marking
All manhole covers are marked with the following: (Name of Manufacturer - EN124 Class Load and Material)

Main Data & Applications

Standard
EN 124-2
Material
GGG
B125
Load Class
B125
Single Seal
Seal Type
Single Seal
With Hinge
Hinge Type
With Hinge
With Lock
Lock Type
Lock
Parking Areas
Application
Parking Areas
Pattern & Design
• Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover. • Round cover with hinge, lock and anti-slippery surface in compliance with EN124, single seal.
Technical Specifications
Art. No.Over baseClear OpenHeight
MC-G2-D-21501740 Ø600 Ø50
Download Datasheet PDF
