I.C.M.I Product

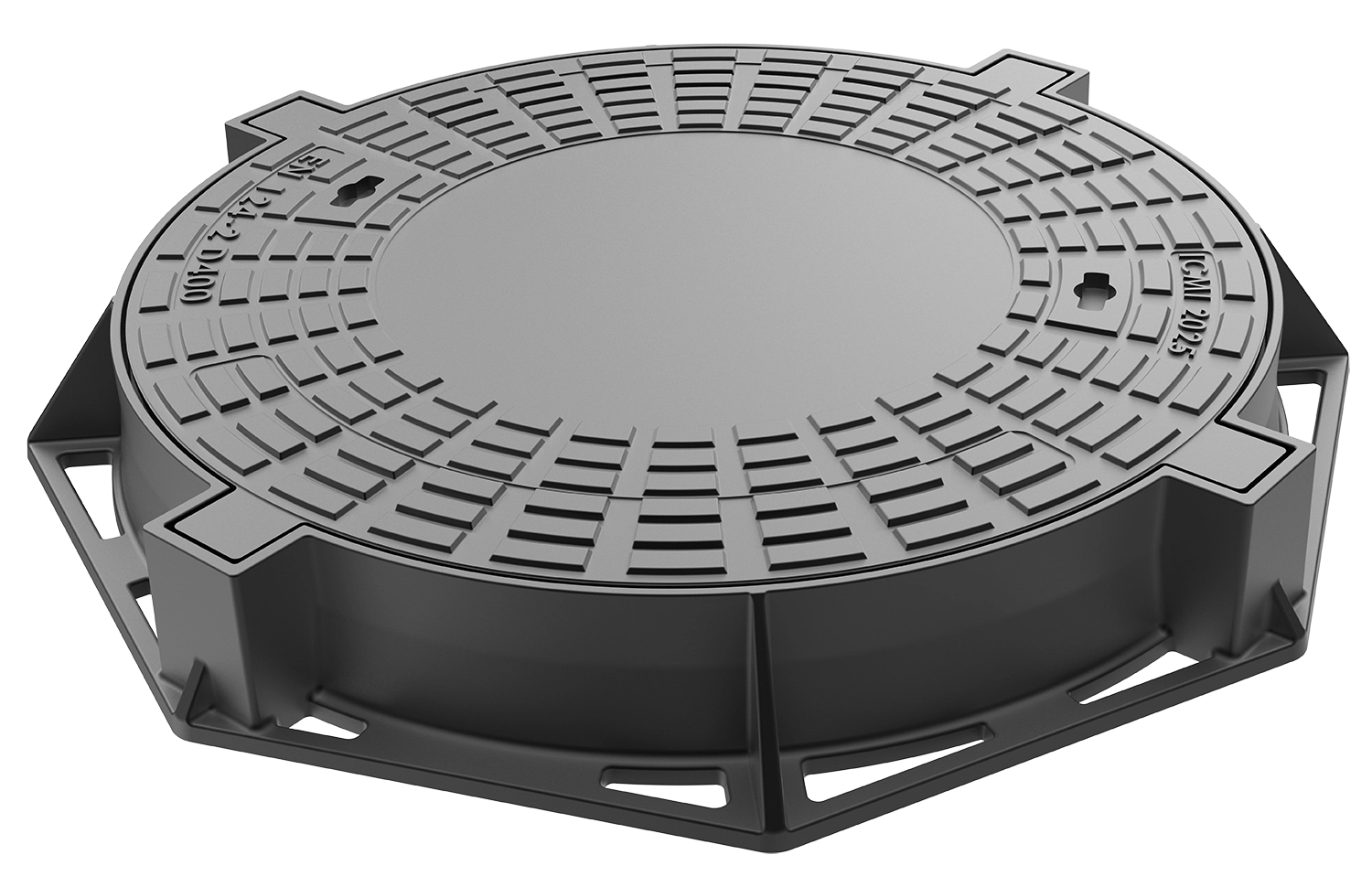

Round Cover, Octagon Frame without Hinge
MC-G4-D-21300-WT
Carriageways of roads (including pedestrian streets), hard shoulders and parking areas.
Standard
EN 124-2
Material
GGG
Load
D400
Status
Available
Product Preview
MC-G4-D-21300-WT
Certification & Specifications
Tested & certified for D400 (d400 Ton) according to EN 124-2
Coating
Applied coat according to BS 3416 Epoxy Paint, Or any other type of paint according to the customer’s requirements.
Marking
All manhole covers are marked with the following: (Name of Manufacturer - EN124 Class Load and Material)
Main Data & Applications
Standard
EN 124-2
Material
GGG
Load Class
D400
Seal Type
Single Seal
Lock Type
high security Lock
Application
Municipal Projects
Pattern & Design
Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
• Octagon frame base design.
• Round cover with bolts lock and anti-slippery surface in compliance with EN124, single seal.
Technical Specifications
| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| MC-G4-D-21301-WT | 740X740 | 600 Ø | 100 |
| MC-G4-D-21302-WT | 930X930 | 760 Ø | 100 |
