Product
Square Frame & Cover with hinges
IC-G3-D-11200
For gully tops installed in the area of kerbside channels of roads.
Standard
EN 124-2
Material
GGG
Load
C250
Status
Available

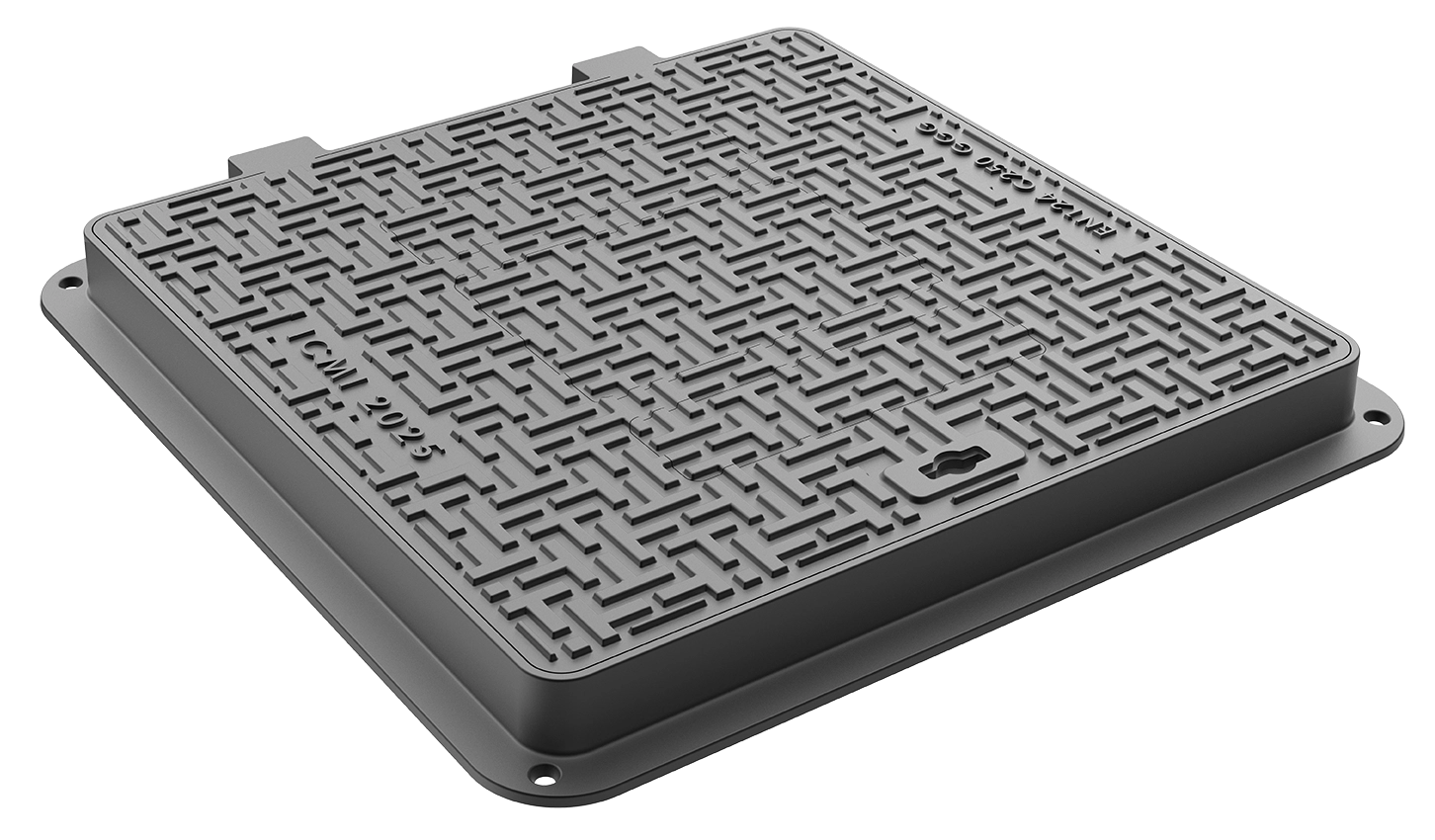

Product Preview
IC-G3-D-11200
Certification & Specifications
Tested & certified for C250 (c250 Ton) according to EN 124-2
Coating
Applied coat according to BS 3416 Epoxy Paint, Or any other type of paint according to the customer’s requirements.
Marking
All manhole covers are marked with the following: (Name of Manufacturer - EN124 Class Load and Material)
Main Data & Applications
Standard
EN 124-2
Material
GGG
Load Class
C250
Hinge Type
With Hinge
Lock Type
Lock
Application
Driveway & Light Traffic
Pattern & Design
• Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
• Square frame base design.
• Square cover design with hinges and non slip pattern.
Technical Specifications
| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| IC-G3-D-15001 | 520x520 | 400x400 | 100 |
| IC-G3-D-15002 | 720x520 | 600x400 | 100 |
| IC-G3-D-15003 | 720x720 | 600x600 | 100 |
