Rectangular Frame with Double Cover with Hinges and Bolts
IC-G4-D-31200-WT2C
Carriageways of roads (including pedestrian streets), hard shoulders and parking areas.
Standard
EN 124-2
Material
GGG
Load
D400
Status
Available

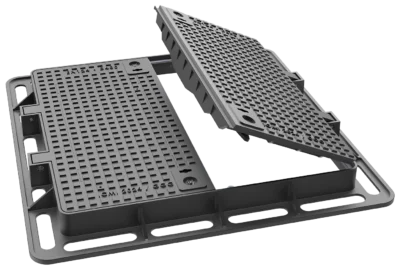

Product Preview
IC-G4-D-31200-WT2C
Certification & Specifications
Tested & certified for D400 (d400 Ton) according to EN 124-2
Coating
Applied coat according to BS 3416 Epoxy Paint, Or any other type of paint according to the customer’s requirements.
Marking
All manhole covers are marked with the following: (Name of Manufacturer - EN124 Class Load and Material)
Main Data & Applications
Standard
EN 124-2
Material
GGG
Load Class
D400
Seal Type
Double Seal
Hinge Type
With Hinge
Lock Type
high security Lock
Application
Municipal Projects
Pattern & Design
• Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
• Rectangular frame base design with slots for bolting.
• Two square cover with hinges, lock and non slip pattern, double seal.
• Watertight cover with hinge, gaskets and bolts.
Technical Specifications
| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| IC-G4-D-31201-WT2C | 1640X940 | 1400X700 | 100 |
| IC-G4-D-31202-WT2C | 2350X1350 | 2000X1000 | 100 |
