Product
Square Frame & Cover with Hinges
IC-G4-D-11200
Carriageways of roads (including pedestrian streets), hard shoulders and parking areas.
Standard
EN 124-2
Material
GGG
Load
D400
Status
Available

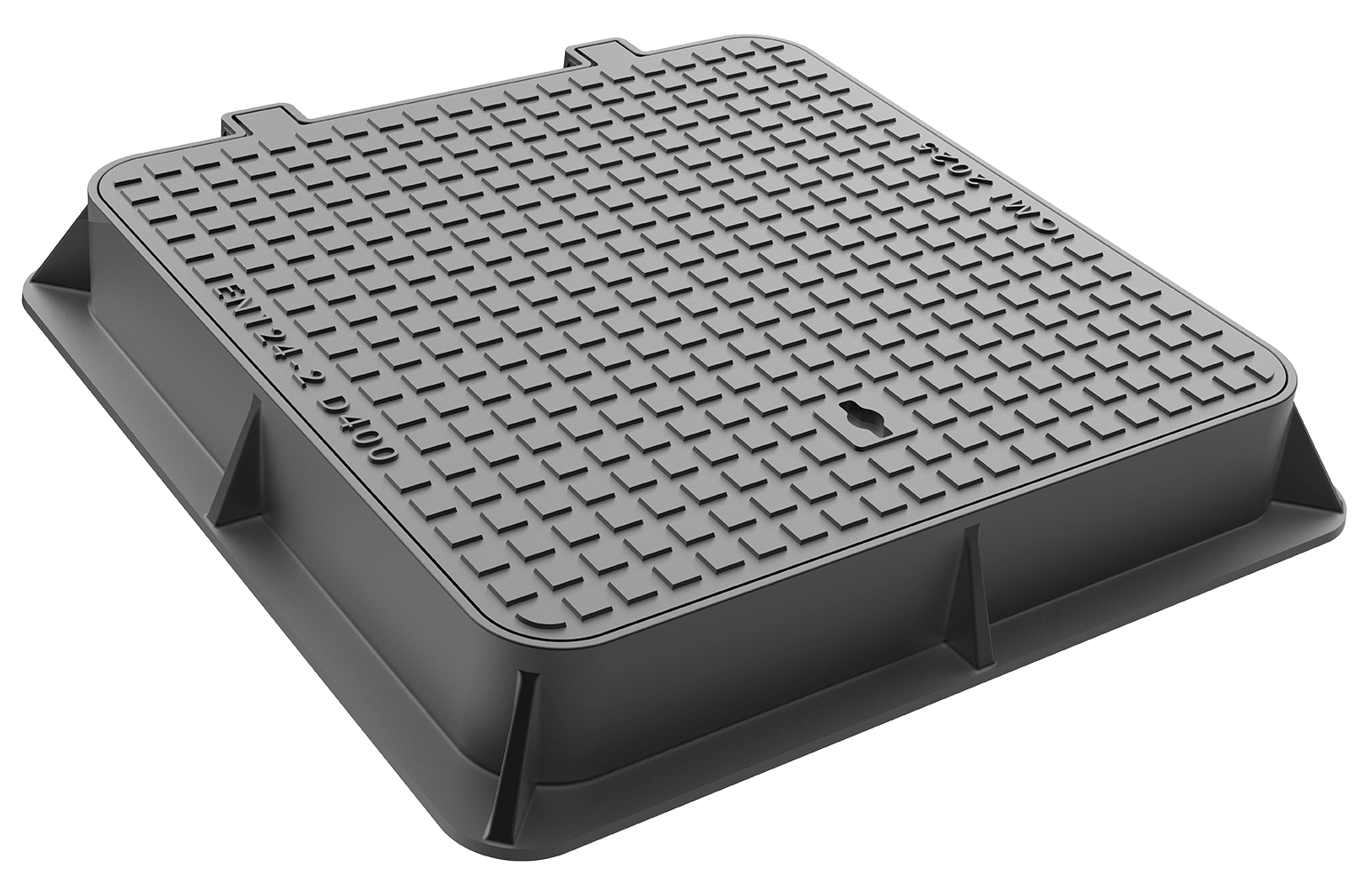

Product Preview
IC-G4-D-11200
Certification & Specifications
Tested & certified for D400 (d400 Ton) according to EN 124-2
Coating
Applied coat according to BS 3416 Epoxy Paint, Or any other type of paint according to the customer’s requirements.
Marking
All manhole covers are marked with the following: (Name of Manufacturer - EN124 Class Load and Material)
Main Data & Applications
Standard
EN 124-2
Material
GGG
Load Class
D400
Hinge Type
With Hinge
Application
Municipal Projects
Pattern & Design
• Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
• Square frame base design.
• Square cover design with hinge and non slip pattern.
Technical Specifications
| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| IC-G4-D-11201 | 730X730 | 600X600 | 100 |
A15
Double Seal

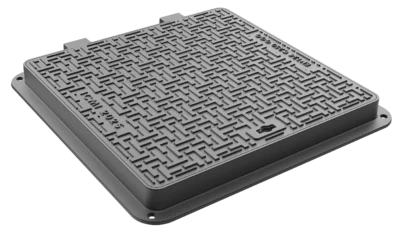

C250

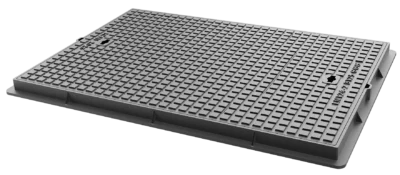

B125
