| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| IC-G3-D-18001 | 550x550 | 400x400 | 100 |
| IC-G3-D-18002 | 750x750 | 600x600 | 100 |
| IC-G3-D-18003 | 960x960 | 800x800 | 100 |
| IC-G3-D-18004 | 1130x820 | 900x600 | 100 |
IC-G3-D-18000

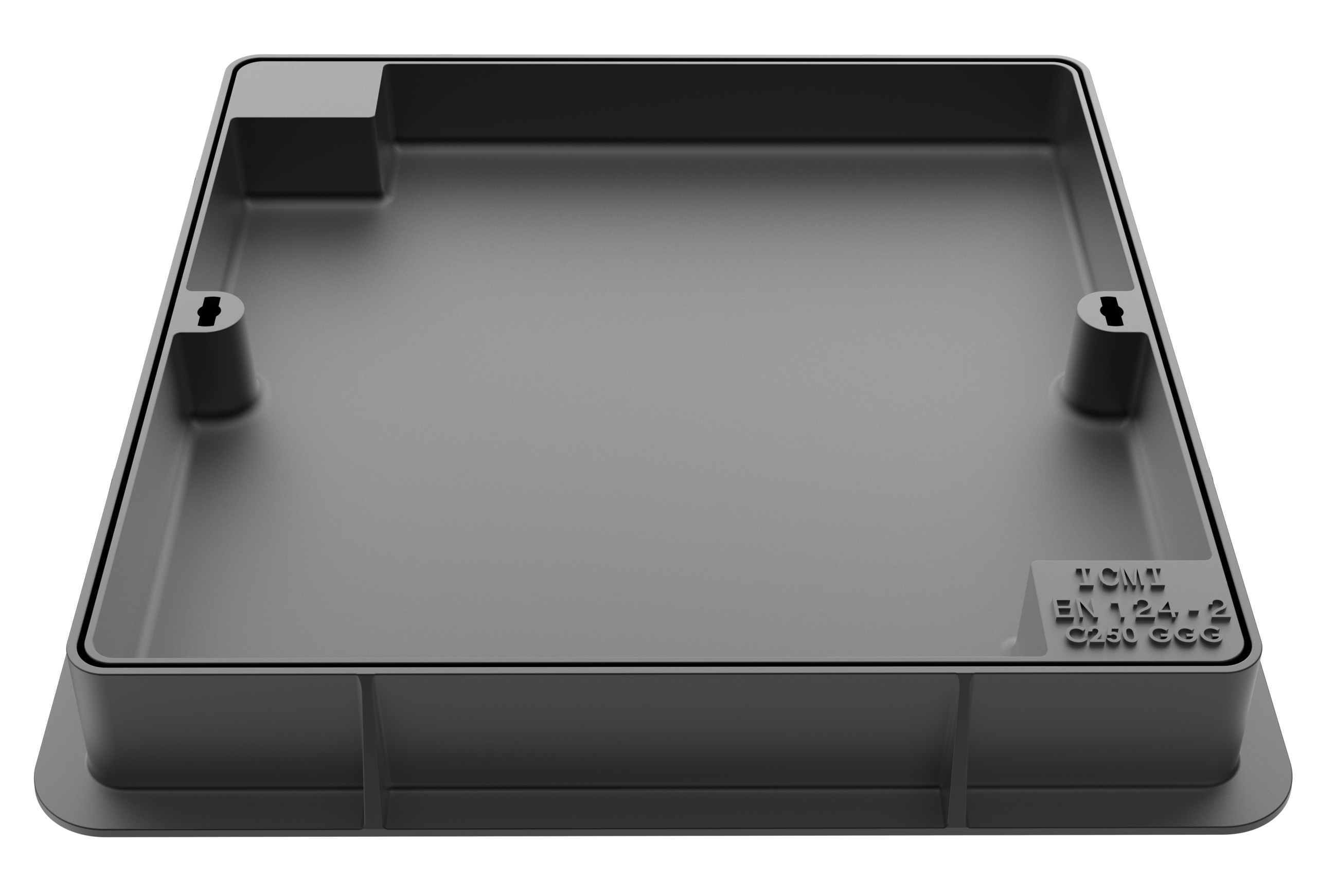

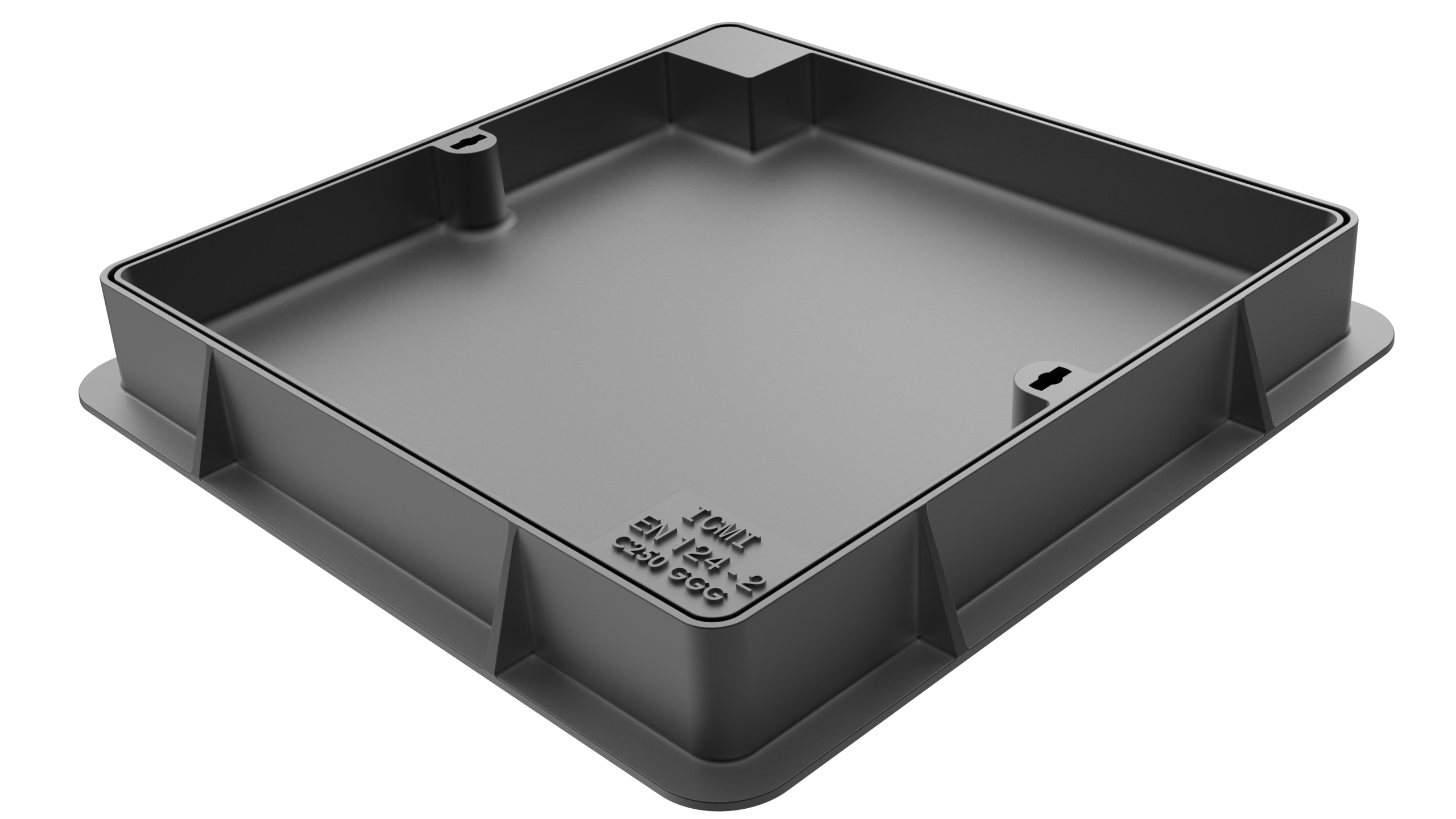

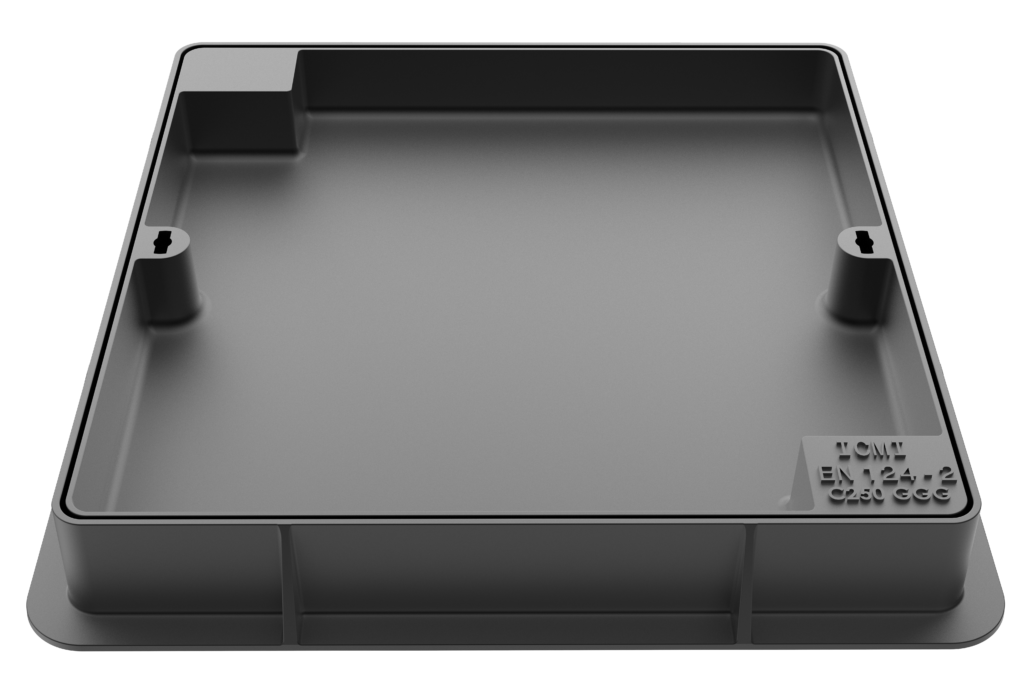

Recessed Inspection Chamber
- Footways, pedestrian and comparable areas, car parks or car parking decks.
Standard:
EN124-2:2015 / Class C250
Material:
EN 1563 – Grad GJS-500/7
Pattern:
Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
Frame Design:
Square/Rectangular frame base design, single seal.
Features
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
All manhole covers are marked with the following:
(Name of Manufacturer – En124 Class Load and Material)
