| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| IC-G2-D-19001 | 500x500 | 400x400 | 42 |
| IC-G2-D-19002 | 740x740 | 600x600 | 42 |
| IC-G2-D-19003 | 840x840 | 700x700 | 42 |
| IC-G2-D-19004 | 950x950 | 800x800 | 42 |
| IC-G2-D-19005 | 1150x1150 | 1000x1000 | 42 |
IC-G2-D-19000
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

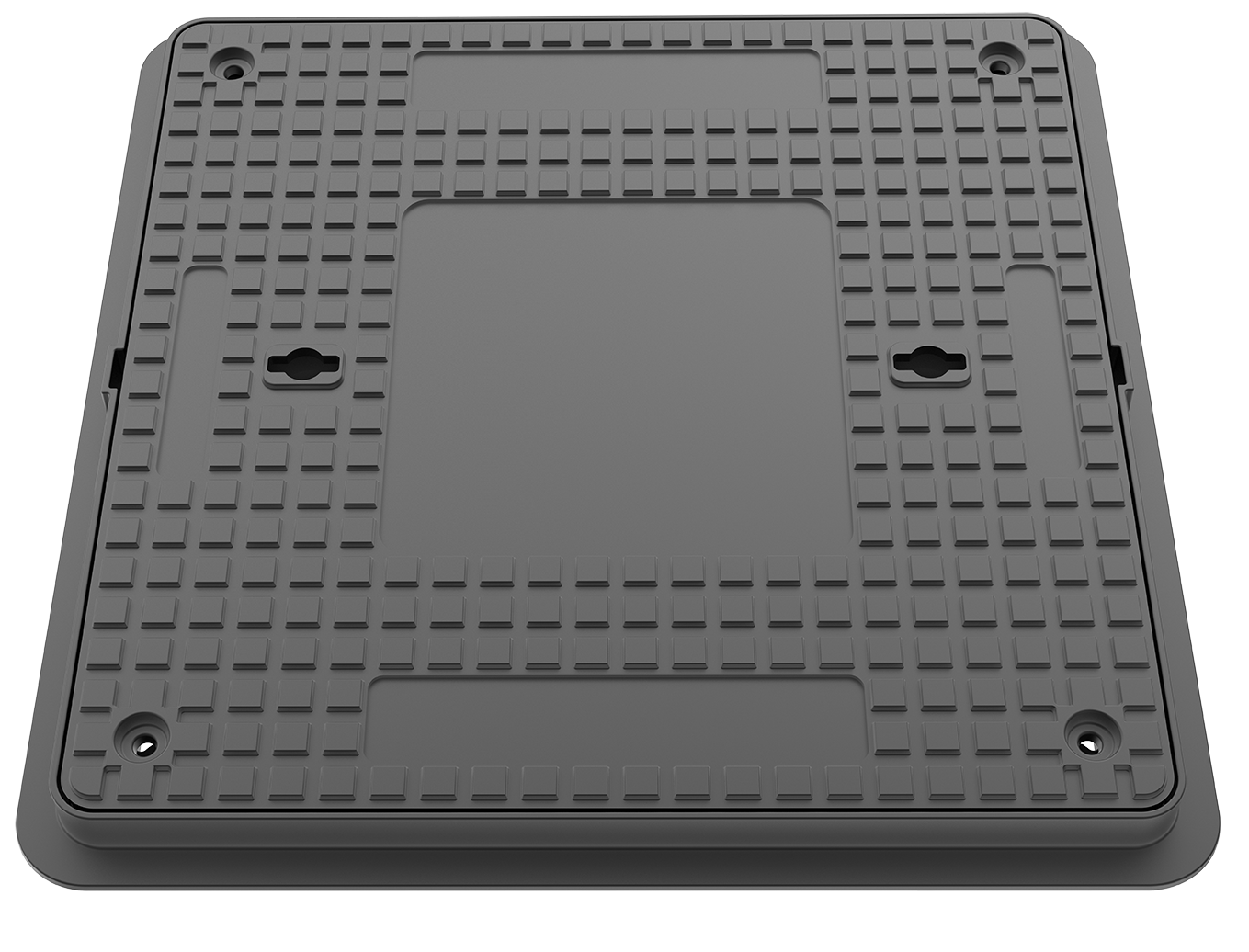

Double Seal inspection chamber without hinges – with bolts
Technical Data - Infrastructure
Class Load
B125
Material
EN 1563 – Grad GJS
Seal Type
Double Seal
Standard
EN124-2:2015
Coating
Epoxy
- Use for footways, pedestrian and comparable areas, car parks or car parking decks.
Standard:
EN124-2:2015 / Class B125
Material:
EN 1563 – Grad GJS-500/7
Pattern:
Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
Frame Design:
Square base design with slots for fixations.
Cover Design:
Squared cover design with non slip pattern, Lock and bolts, double seal.
Features
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
All manhole covers are marked with the following:
(Name of Manufacturer – En124 Class Load and Material)
