| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| IC-G2-D-18001 | 550x550 | 400x400 | 100 |
| IC-G2-D-18002 | 750x750 | 600x600 | 100 |
| IC-G2-D-18003 | 960x960 | 800x800 | 100 |
| IC-G2-D-18004 | 1120x820 | 900x600 | 100 |
IC-G2-D-13000

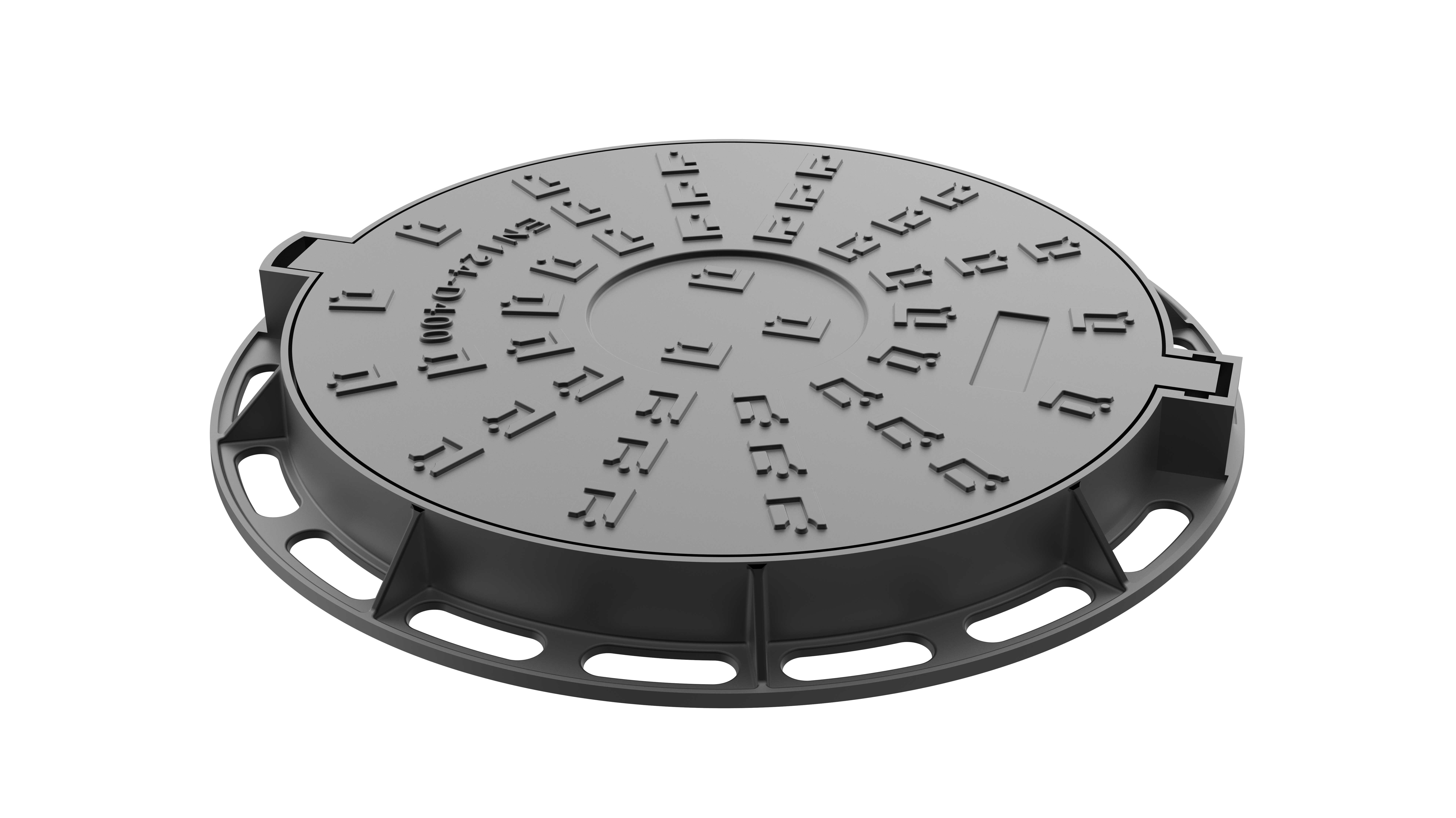

Round Manhole Cover with hinge.
- Use for footways, pedestrian and comparable areas, car parks or car parking decks.
Standard:
EN124-2:2015 / Class B125
Material:
EN 1563 – Grad GJS-500/7
Pattern:
- Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
- Round cover with anti-slippery, single seal.
- Non ventilated cover to prevent vitiated air spreading from underground to the outside.
Features
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
All manhole covers are marked with the following:
(Name of Manufacturer – En124 Class Load and Material)
