| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| IC-G4-D-19001 | 580x580 | 400x400 | 100 |
| IC-G4-D-19002 | 750x750 | 600x600 | 100 |
| IC-G4-D-19003 | 940x940 | 700x700 | 100 |
| IC-G4-D-19004 | 1040x1040 | 800x800 | 100 |
| IC-G4-D-19005 | 1180x1180 | 900x900 | 100 |
| IC-G4-D-19006 | 1240x1240 | 1000x1000 | 100 |
| IC-G4-D-19007 | 1460x1460 | 1200x1200 | 100 |
| IC-G4-D-19008 | 1640x940 | 1400x700 | 100 |
| IC-G4-D-19011 | 1640x1640 | 1400x1400 | 100 |
| IC-G4-D-19009 | 2350x1350 | 2000x1000 | 100 |
| IC-G4-D-19010 | 2350x2350 | 2000x2000 | 100 |

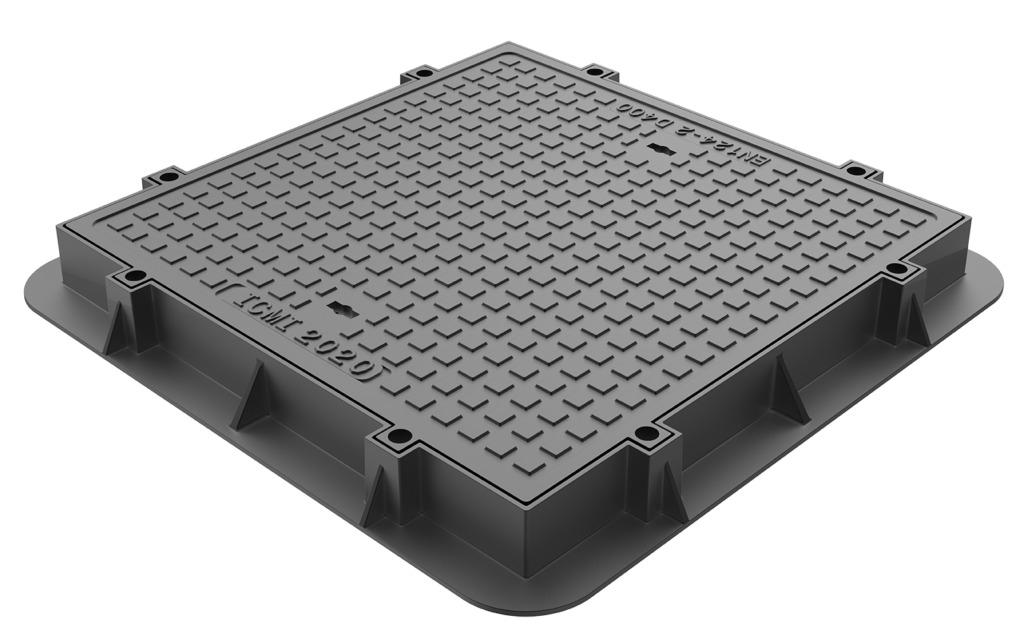

IC-G4-D-19000
Inspection Chamber – Double Seal without Hinge
- Carriageways of roads (including pedestrian streets), hard shoulders and parking areas.
Standard:
EN124-2:2015 / Class D400
Material:
EN 1563 – Grad GJS-500/7
Pattern:
- Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
Frame:
- Squared/Rectangular base design with slots for fixations.
Cover:
- Squared/Rectangular cover design with bolts and non slip pattern, double seal.
Features
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
All manhole covers are marked with the following:
(Name of Manufacturer – En124 Class Load and Material)
