| Art. No. | Over base | Clear Open | Height |
|---|---|---|---|
| IC-G4-D-15101 | 740x740 | 600 Ø | 100 |
| IC-G4-D-15102 | 840x840 | 600 Ø | 100 |
| IC-G4-D-15103 | 1000x1000 | 760 Ø | 100 |
IC-G4-D-15100

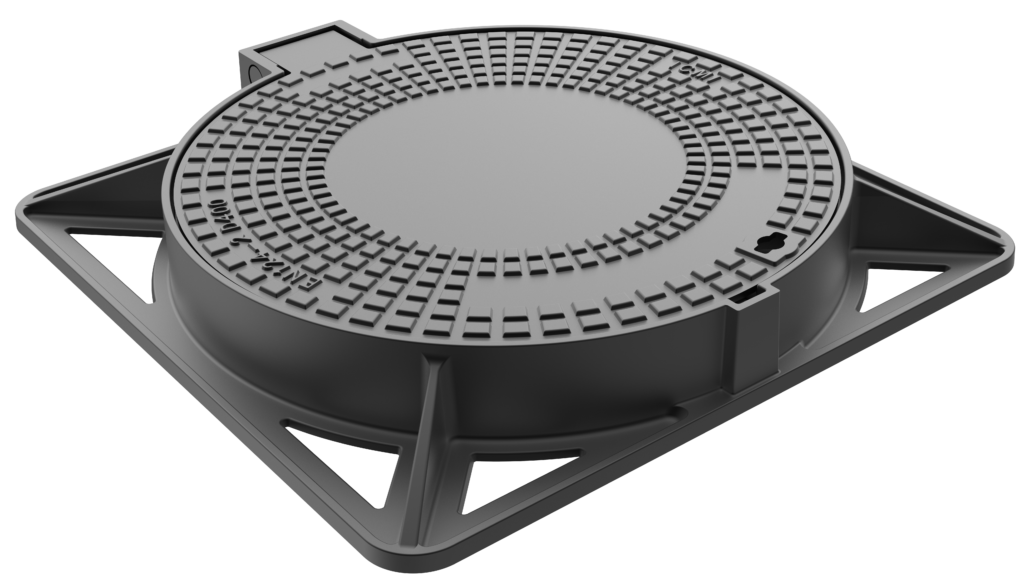

Inspection Chamber – Round Cover | Square Frame with Hinge
- Carriageways of roads (including pedestrian streets), hard shoulders and parking areas.
Standard:
EN124-2:2015 / Class D400
Material:
EN 1563 – Grad GJS-500/7
Pattern:
- Design of cover pattern allows for special Logo or project design to be inserted in its specified area on the cover.
Frame:
- Square/Rectangular ventilated frame base design.
Cover:
- Round cover design with non slip pattern, single seal.
Features
Applied Bitumen coat according to BS 3416 or Epoxy Paint.
All manhole covers are marked with the following:
(Name of Manufacturer – En124 Class Load and Material)
