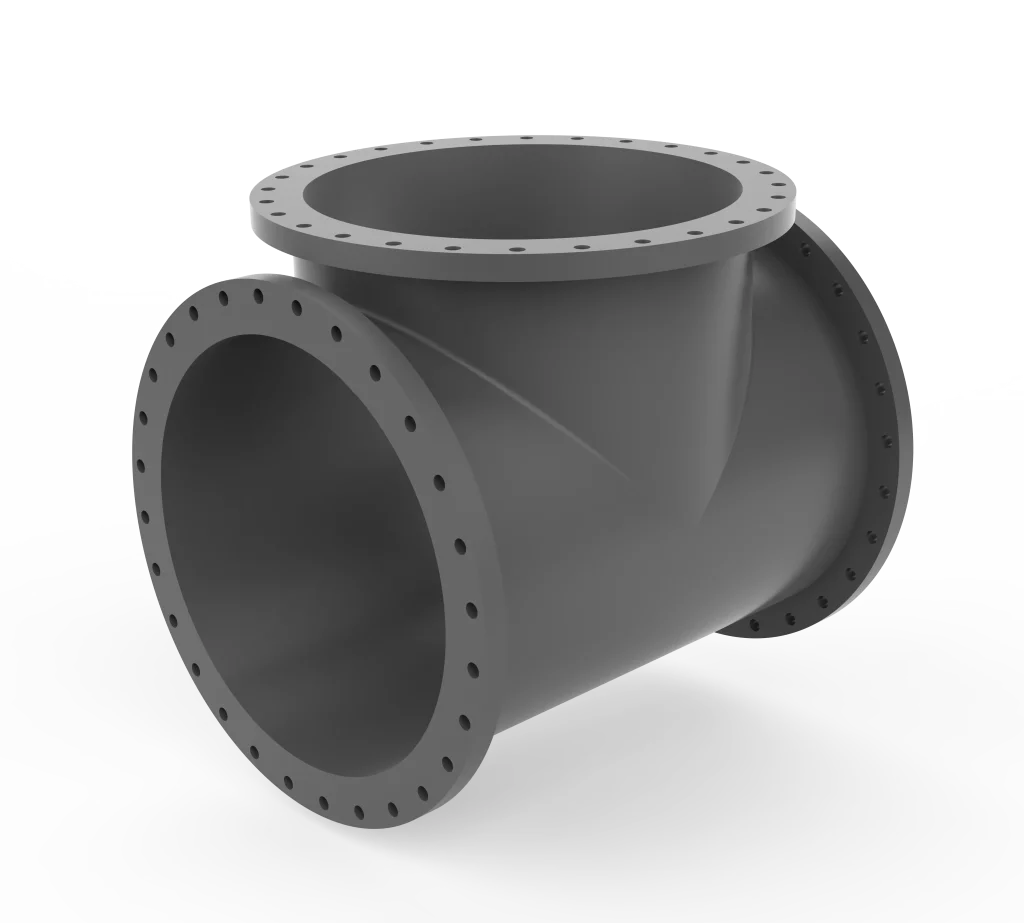

Flanged Tee

Technical Specification of Ductile iron Pipes and Fittings
The ductile iron material features similar mechanical properties with carbon steel such as high mechanical strength, good ductility, and the same anti-corrosion performance as cast iron. Therefore it has gradually become the world’s most safe and reliable pipes and fittings in the field of water supply and drainage.

ICMI provides ductile iron pipes and fittings ranging from DN80mm – DN2600mm in accordance with ISO 2531/EN 545/598

Categories Fittings, Flanged Fittings Tags all tee, flanged, tee

Features

Applied Bitumen coat according to BS 3416 or Epoxy Paint.

All manhole covers are marked with the following:
(Name of Manufacturer – En124 Class Load and Material)

Body (DN)	e	L	Branch (DN)	e1	h	PN10	PN16	PN25
80	8.1	330	80	8.1	165	15.6	15.6	15.6
100	8.4	360	80	8.1	175	18.4	18.4	19.5
	8.4	360	100	8.4	180	19.4	19.4	21
125	8.8	400	80	8.1	190	23	23	24.5
	8.8	400	100	8.4	195	24	24	26
	8.8	400	125	8.8	200	25.5	25.5	27.5
150	9.1	440	80	8.1	205	28.5	28.5	31
	9.1	440	100	8.4	210	29.5	29.5	32
	9.1	440	150	9.1	220	32.5	32.5	36
200	9.8	520	80	8.1	235	42	41.5	46
	9.8	520	100	8.4	240	43	42	47.5
	9.8	520	150	9.1	250	46	45.5	51
	9.8	520	200	9.8	260	49.5	49	56
250	10.5	700	100	8.4	275	68	67	75
	10.5	700	150	9.1	325	73.5	73	81
	10.5	700	200	9.8	325	76	75	85
	10.5	700	250	10.5	350	82	81	93
300	11.2	800	100	8.4	300	94	93	105
	11.2	800	150	9.1	350	99	98.5	110
	11.2	800	200	9.8	350	102	101	114
	11.2	800	300	11.2	400	116	115	131
350	11.9	850	100	8.4	325	116	122	139
	11.9	850	150	9.1	325	120	126	143
	11.9	850	200	9.8	325	121	128	146
	11.9	850	300	11.2	425	140	145	166
	11.9	850	350	11.9	425	142	151	176
400	12.6	900	100	8.4	350	143	154	177
	12.6	900	150	9.1	350	149	158	181
	12.6	900	200	9.8	350	148	159	184
	12.6	900	300	11.2	450	168	177	204
	12.6	900	400	12.6	450	174	191	225
450	13.3	950	100	8.4	375	177	193	215
	13.3	950	150	9.1	375	180	196	219
	13.3	950	200	8.9	375	183	199	222
	13.3	950	300	11.2	475	199	215	242
	13.3	950	400	12.6	475	210	230	263
	13.3	950	450	13.3	475	216	240	272
500	14	1000	100	8.4	400	210	241	265
	14	1000	150	9.1	400	218	245	267
	14	1000	200	9.8	400	215	245	271
	14	1000	300	11.2	500	237	264	291
	14	1000	400	12.6	500	242	276	311
	14	1000	500	14	500	252	297	332
600	15.4	1100	150	9.1	450	309	356	381
	15.4	1100	200	9.8	450	305	358	388
	15.4	1100	300	11.2	550	328	375	404
	15.4	1100	400	12.6	550	329	387	427
	15.4	1100	600	15.4	550	355	434	477
700	16.8	650	200	9.8	525	258	298	x
	16.8	760	300	11.2	540	319	342	x
	16.8	870	400	12.6	555	343	379	x
	16.8	1200	600	15.4	585	476	523	x
	16.8	1200	700	16.8	600	477	523	x
800	18.2	690	200	9.8	585	352	390	x
	18.2	800	300	11.2	600	413	443	x
	18.2	910	400	12.6	615	441	484	x
	18.2	1350	600	15.4	645	613	678	x
	18.2	1350	800	18.2	675	657	715	x
900	19.6	730	200	9.8	645	436	484	x
	19.6	950	400	12.6	675	541	594	x
	19.6	1500	600	15.4	705	787	860	x
	19.6	1500	800	18.2	735	860	913	x
	19.6	1500	900	19.6	750	853	924	x
1000	21	770	200	9.8	705	546	629	x
	21	990	400	12.6	735	668	755	x
	21	1650	600	15.4	765	1007	1116	x
	21	1650	800	18.2	795	1085	1168	x
	21	1650	1000	21	825	1105	1229	x
1100	22.4	1030	400	12.6	795	839	913	x
	22.4	1250	600	15.4	825	990	1083	x
	22.4	1470	800	18.2	855	1160	1245	x
	22.4	1690	1000	21	885	1345	1450	x
	22.4	1800	1100	22.4	900	1450	1555	x
1200	23.8	1240	600	15.4	885	1101	1256	x
	23.8	1470	800	18.2	915	1291	1439	x
	23.8	1700	1000	21	945	1494	1664	x
	23.8	1950	1200	23.8	975	1806	1970	x
1400	26.6	1550	600	15.4	980	1555	1818	x
	26.6	1760	800	18.2	1010	1886	2041	x
	26.6	2015	1000	21	1040	2131	2309	x
	26.6	1980	1200	23.8	1070	2262	2431	x
	26.6	2200	1400	26.6	1100	2545	2715	x
1500	28	1350	600	15.4	1035	1762	1951	x
	28	1570	800	18.2	1065	2002	2193	x
	28	1790	1000	21	1095	2263	2474	x
	28	2010	1200	23.8	1125	2552	2782	x
	28	2230	1400	26.6	1155	2851	3084	x
	28	2340	1500	28	1170	3021	3284	x
1600	29.4	1600	600	15.4	1090	2167	2398	x
	29.4	1835	800	18.2	1120	2452	2675	x
	29.4	2065	1000	21	1150	2740	2986	x
	29.4	2300	1200	23.8	1180	3058	3327	x
	29.4	2260	1400	26.6	1210	3208	3444	x
	29.4	2480	1600	29.4	1240	3586	3854	x
1800	32.2	1655	600	15.4	1200	2694	2972	x
	32.2	1835	800	18.2	1230	3023	3299	x
	32.2	2120	1000	21	1260	3375	3669	x
	32.2	2350	1200	23.8	1290	3740	4056	x
	32.2	2320	1400	26.6	1320	3910	4190	x
	32.2	2540	1600	29.4	1350	4328	4641	x
	32.2	2760	1800	32.2	1380	4750	5086	x
2000	35	1705	600	15.4	1310	3309	3642	x
	35	1720	800	18.2	1340	3505	3796	x
	35	2170	1000	21	1370	4112	4459	x
	35	2160	1200	23.8	1400	4314	4644	x
	35	2635	1400	26.6	1430	4966	5340	x
	35	2600	1600	29.4	1460	5202	5567	x
	35	2820	1800	32.2	1490	5668	6055	x
	35	3040	2000	35	1520	6185	6599	x
2100	36.4	2190	1200	23.8	1455	4767	5150	x
	36.4	2410	1400	26.6	1485	5214	5600	x
	36.4	2630	1600	29.4	1515	5710	6128	x
	36.4	2850	1800	32.2	1545	6201	6641	x
	36.4	3070	2000	35	1575	6737	7203	x
	36.4	3180	2100	36.4	1590	7053	7549	x
2200	37.8	1560	600	15.4	1420	3675	4034	x
	37.8	1780	800	18.2	1450	4298	4654	x
	37.8	2000	1000	21	1480	4753	5128	x
	37.8	2220	1200	23.8	1510	5026	5413	x
	37.8	2440	1400	26.6	1540	5709	6106	x
	37.8	2660	1600	29.4	1570	6234	6664	x
	37.8	2880	1800	32.2	1600	6474	6934	x
	37.8	3100	2000	35	1630	7316	7795	x
	37.8	3320	2200	37.8	1660	7954	8464	x
2400	40.6	1620	600	15.4	1530	4418	4849	x
	40.6	1840	800	18.2	1560	5200	5671	x
	40.6	2060	1000	21	1590	5721	6211	x
	40.6	2280	1200	23.8	1620	5963	6432	x
	40.6	2500	1400	26.6	1650	6804	7317	x
	40.6	2720	1600	29.4	1680	7392	7937	x
	40.6	2940	1800	32.2	1710	7614	8145	x
	40.6	3160	2000	35	1740	8591	9185	x
	40.6	3380	2200	37.8	1770	9275	9901	x
	40.6	3600	2400	40.6	1800	10031	10715	x
2600	43.4	1680	600	15.4	1640	5214	5711	x
	43.4	1900	800	18.2	1670	6076	6596	x
	43.4	2120	1000	21	1700	6673	7213	x
	43.4	2340	1200	23.8	1730	7289	7850	x
	43.4	2560	1400	26.6	1760	7585	8123	x
	43.4	2780	1600	29.4	1790	8564	9159	x
	43.4	3000	1800	32.2	1820	9213	9831	x
	43.4	3220	2000	35	1850	9505	10128	x
	43.4	3440	2200	37.8	1880	10647	11323	x
	43.4	3660	2400	40.6	1910	11455	12188	x
	43.4	3880	2600	43.4	1940	12230	12988	x
